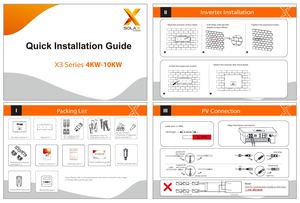

Inverter Installation - Mark the position of four holes - Drill holes with φ6 drill. - Tighten the expansion tubes. - Depth: at least 50mm. X3 Series 4KW-10KW - Screw the expansion screws. - Match the inverter with the bracket. Packing List PV Connection cable size: 12 AWG - Align the halves connectors DC pin contact trip length Expansion tube X 4 (2*positive, 2*negative) DC connector X 4 X3 series inverter X 1 Bracket X 1 AC connector X 1 Expansion screw X 4 Earth terminal X 1 12 AWG positive DC male plug pin contact X3 Series 4.0KW-10.0KW Waterproof connector Quick installation guide with RJ45 X 2 Product manual X 1 Warranty card X 1 X1 Pocket Lan( Optional ) negative DC female plug nut cable pin contact clamp contact tight nut Note: Please refer to the appropriate instruction manual for the usage of Pocket WIFI and Pocket LAN × + + + PV1 - - Note! The PV connection mode in this box Pocket WiFi( Optional ) Meter( Optional ) + + PV2 is not allowed! - - - PV array Inverter
