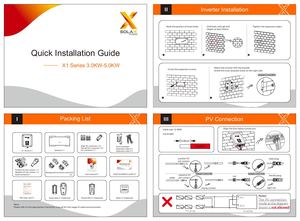

II Inverter Installation - Mark the position of three holes - Drill holes with φ6 drill. - Tighten the expansion tubes. - Depth: at least 50mm. Quick Installation Guide X1 Series 3.0KW-5.0KW - Match the inverter with the bracket. - Screw the expansion screws. - Screw the cross recessed screw on the right side. torque:1.5±0.2Nm I Packing List III PV Connection Cable size: 12 AWG -Align the four halves connectors. trip length: 6.0mm Male DC connector X 2 Screw package: 12 AWG Female DC connector X 2 Expansion tube X 3 X1 Series X 1 Bracket X 1 AC connector X 1 Expansion tube X 3 positive DC male plug pin contact X1 Series 3.0KW-5.0KW Positive DC pin contact ×2 Negative DC pin contact ×2 Waterproof connector with RJ45 Earth terminal X 1 User manual X 1 Quick installation guide X1 torque:1.2±0.1Nm torque:1.2±0.1Nm X2 negative DC female plug nut cable pin contact clamp contact tight nut × + + + PV1 Note! Warranty card X 1 Smart plug X 1(Optional) Pocket WiFi X 1(Optional) Meter X 1(Optional
