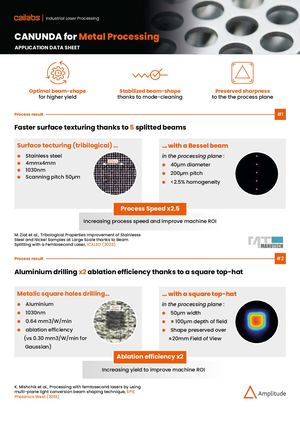

Industrial Laser Processing CANUNDA for Metal Processing APPLICATION DATA SHEET Optimal beam-shape Stabilized beam-shape Preserved sharpness for higher yield thanks to mode-cleaning to the the process plane Process result #1 Faster surface texturing thanks to 5 splitted beams Surface tecturing (tribilogical) … … with a Bessel beam ● Stainless steel in the processing plane : 4mmx4mm 600µm ● ● 40µm diameter ● 1030nm ● 200µm pitch ● Scanning pitch 50µm ● <2.5% homogeneity Process Speed x2.5 Increasing process speed and improve machine ROI M. Ziat et al., Tribological Properties Improvement of Stainlesss Steel and Nickel Samples at Large Scale thanks to Beam Splitting with a Femtosecond Laser, ICALEO (2023) Process result #2 Aluminium drilling x2 ablation efficiency thanks to a square top-hat Metalic square holes drilling… … with a square top-hat ● Aluminium 60µm in the processing plane : ● 1030nm ● 50µm width ● 0.64 mm3/W/min ● ± 100µm depth of field ● ablation efficiency ● Shape preserve Спрятать
