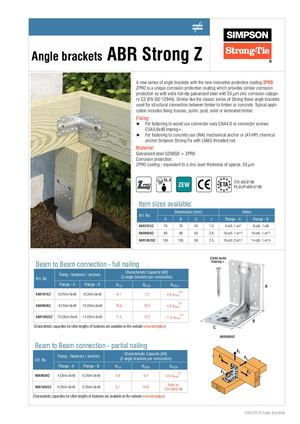

® Angle brackets ABR Strong Z A new series of angle brackets with the new innovative protective coating ZPRO. ZPRO is a unique corrosion protection coating which provides similar corrosion protection as with extra hot-dip galvanized steel with 55 μm zinc corrosion catego- ry C3 (EN ISO 12944). Similar like the classic series of Strong these angle brackets used for structural connection between timber to timber or concrete. Typical appli- cation includes fixing trusses, purlin, post, solid or laminated timber. Fixing: zz For fastening to wood use connector nails CNA4,0 or connector screws CSA5,0x40 Impreg+. zz For fastening to concrete use (WA) mechanical anchor or (AT-HP) chemical anchor Simpson Strong-Tie with LMAS threaded rod. Material: Galvanized steel S250GD + ZPRO Corrosion protection: ZPRO coating - equivalent to a zinc layer thickness of approx. 55 μm CL.3 ETA-06/0106 PRO 800 ZEW ETA PL-DoP-e06-0106 Item sizes available: Dimenssion [mm] Holes Art. No A B C t Flange - A Flange -
