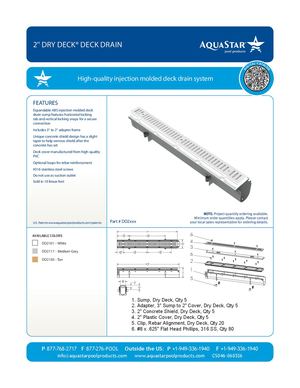

DD2xxx - 2'' Dry Deck™ Deck Drain

2'' DRY DECK® DECK DRAIN High-quality injection molded deck drain system FEATURES Expandable ABS injection molded deck drain sump features horizontal locking tab and vertical locking snaps for a secure connection Includes 3'' to 2'' adapter frame Unique... More

2'' DRY DECK® DECK DRAIN High-quality injection molded deck drain system FEATURES Expandable ABS injection molded deck drain sump features horizontal locking tab and vertical locking snaps for a secure connection Includes 3'' to 2'' adapter frame Unique concrete shield design has a slight taper to help remove shield after the concrete has set Deck cover manufactured from high-quality PVC Optional loops for rebar reinforcement #316 stainless steel screws Do not use as suction outlet Sold in 10 linear feet U.S. Patents www.aquastarpoolproducts.com/patents Part # DD2xxx STANDARD COLORS 24" 6 DD2101 – White 13 4 16 " 13 14 32 " 4 DD2117 – Medium Gray 9 3 16 " 3 DD2130 – Tan 13 2 32 " 19 9 32 " 19 9 32 " 6 2 3 24 4 " 1 4" 5 31 1 32 " 7 8" 3 14" 1. Sump, Dry Deck, Qty 5 2. Adapter, 3" Sump to 2" Cover, Dry Deck, Qty 5 3. 2" Concrete Shield, Dry Deck, Qty 5 4. 2" Plastic Cover, Dry Deck, Qty 5 5. Clip, Rebar Alignment, Dry Deck, Qty 20 6. Screw, #8 x 5/8" Flat Head Phillips, 316 SS, Qty 50 P Less
