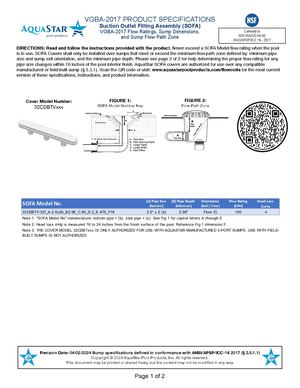

VGBA-2017 PRODUCT SPECIFICATIONS Suction Outlet Fitting Assembly (SOFA) VGBA-2017 Flow Ratings, Sump Dimensions, Certified to Sump Flow Path Zone, and Head Loss Curves NSF/ANSI/CAN 50 ANSI/APSP/ICC 16 - 2017 DIRECTIONS: Please follow the SOFA specific flow rates, sump specifications, and flow path zone information below.
The installation must conform to these minimum/maximum requirements including the SOFA dimension defined in Figure 1. The flow path zone is defined by dimensions A through E. Please write the Cover Model Number, orientation, and SOFA Model Flow Rating on the VGBA DRAIN COVER IDENTIFICATION INFORMATION label that comes with each AquaStar Pool Products, Inc. drain cover. FOR MOST CURRENT INFORMATION
FIGURE 1 – SOFA MODEL & FLOW PATH SCAN THE QR CODE OR VISIT Cover Model Number: WWW.AQUASTARPOOLPRODUCTS.COM/FLOWCODE
PRINTED DOCUMENTS MAY NOT HAVE THE MOST CURRENT FLOW 32CDBTVxxx RATINGS OR INSTALLATION OPTIONS. Pipe Size Pipe Depth Orientation Flow Rating Head Loss
