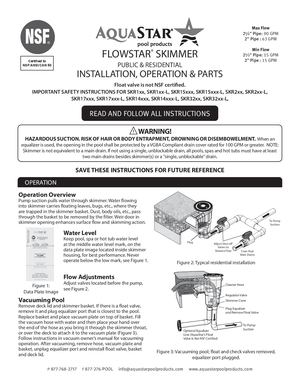

Max Flow 21⁄2'' Pipe: 90 GPM 2'' Pipe : 63 GPM Min Flow Certified to FLOWSTAR® SKIMMER 21⁄2'' Pipe: 15 GPM 2'' Pipe : 15 GPM NSF/ANSI/CAN 50 PUBLIC & RESIDENTIAL INSTALLATION, OPERATION & PARTS Float valve and deck lid are not NSF certified. IMPORTANT SAFETY INSTRUCTIONS FOR SKR1xx, SKR1xx-L, SKR15xxx, SKR15xxx-L, SKR2xx, SKR2xx-L, SKR17xxx, SKR17xxx-L, SKR14xxx, SKR14xxx-L, SKR32xx, SKR32xx-L, READ AND FOLLOW ALL INSTRUCTIONS ⚠WARNING! HAZARDOUS SUCTION. RISK OF HAIR OR BODY ENTRAPMENT, DROWNING OR DISEMBOWELMENT. When an equalizer is used, the opening in the pool shall be protected by a VGBA Compliant drain cover rated for 100 GPM or greater. NOTE: Skimmer is not equivalent to a main drain. If not using a single, unblockable drain, all pools, spas and hot tubs must have at least two main drains besides skimmer(s) or a "single, unblockable" drain. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE OPERATION Operation Overview Pump suction pulls water through skimmer. Water flowing into skimm
