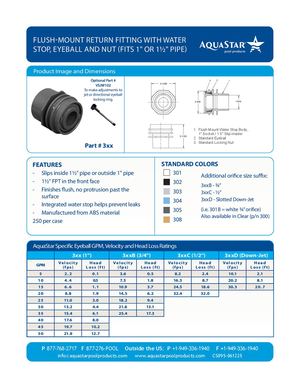

FLUSH-MOUNT RETURN FITTING WITH WATER STOP, EYEBALL AND NUT (FITS 1" OR 1½" PIPE) Product Image and Dimensions Optional Part # 3 2 1 2-13/32 VSJW102 To make adjustments to jet or directional eyeball locking ring. 2-3/32 1-5/16 1. Flush Mount Water Stop...
More

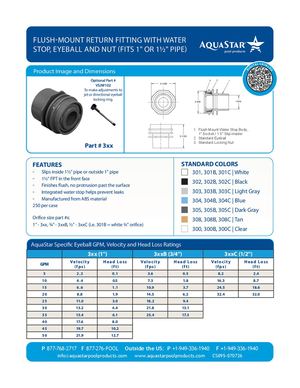

FLUSH-MOUNT RETURN FITTING WITH WATER STOP, EYEBALL AND NUT (FITS 1" OR 1½" PIPE) Product Image and Dimensions Optional Part # 3 2 1 2-13/32 VSJW102 To make adjustments to jet or directional eyeball locking ring. 2-3/32 1-5/16 1. Flush Mount Water Stop Body, 1" Spigot / 1-1/2" Socket 2-11/32 2. Standard Eyeball 3. Standard Locking Nut Part # 3xx FEATURES STANDARD COLORS STANDARD COLORS - Slips inside 1½” pipe or outside 1” pipe Additional orifice size suffix: 301 - Finishes flush, no protrusion past the 302 3xxB - ¾” surface 3xxC - ½” - Integrated water stop helps prevent leaks 303 3xxD - Slotted Down-Jet - Manufactured from engineered polymer 304 UV-resistant ABS material (i.e. 301B = white ¾” orifice) 308 Also available in Clear (p/n 300) 250 per case AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings 3xx (1'') 3xxB (3/4'') 3xxC (1/2'') 3xxD (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s
