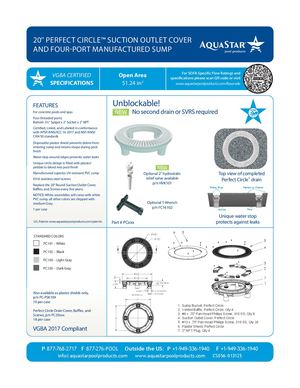

20'' PERFECT CIRCLE™ SUCTION OUTLET COVER AND FOUR-PORT MANUFACTURED SUMP For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 51.24 in2 www.aquastarpoolproducts.com/flowcode FEATURES Unblockable! For concrete pools and spas No second drain or SVRS required NEW Four threaded ports: Bottom 2½" Spigot x 2" Socket x 2" NPT Certified, Listed, and Labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/ CAN 50 standards Disposable plaster shield prevents debris from entering sump and retains shape during pool finish Water stop around edges prevents water leaks Unique circle design is filled with plaster/ NEW pebble to blend into pool finish Optional 2'' hydrostatic Manufactured superior UV-resistant PVC sump relief valve available Top view of completed #316 stainless steel screws p/n HVK101 Perfect Circle™ drain Replace the 20” Round Suction Outlet Cover, See page 35 Baffles, and Screws every five years. Water Stop Peb
