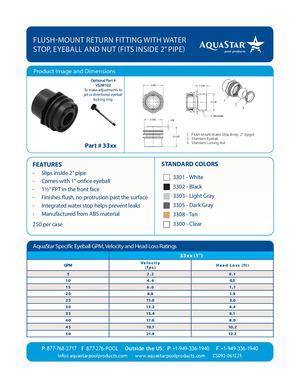

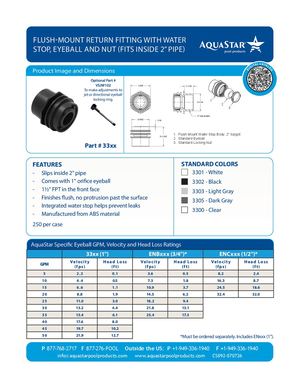

FLUSH-MOUNT RETURN FITTING WITH WATER STOP, EYEBALL AND NUT (FITS INSIDE 2” PIPE) Product Image and Dimensions Optional Part # VSJW102 To make adjustments to jet or directional eyeball locking ring. Part # 33xx FEATURES STANDARD COLORS STANDARD COLORS - Slips inside 2” pipe Additional orifice size suffix: 3301 - Finishes flush, no protrusion past the surface 3302 33xxB - ¾” - Integrated water stop helps prevent leaks 33xxC - ½” - Manufactured from engineered polymer 3303 33xxD - Slotted Down-Jet UV-resistant ABS material 3304 (i.e. 3301B = white ¾” orifice) 250 per case 3308 Also available in Clear (p/n 3300) AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings 33xx (1'') 33xxB (3/4'') 33xxC (1/2'') 33xxD (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) 5 2.2 0 .1 3.6 0.5 8.2 2.4 10.1 2.1 10 4.4 0.5 7.3 1.8 16.3 8.7 20.2 8.1 15 6.6 1.1 10.9
