32" CHANNEL DRAIN FLAT GRATE SUCTION OUTLET COVER AND ABS THREE-PORT MANUFACTURED SUMP FOR FIBERGLASS For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 25.9 in2...
More

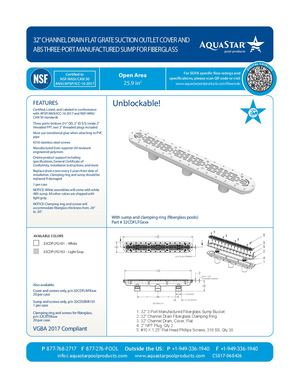

32" CHANNEL DRAIN FLAT GRATE SUCTION OUTLET COVER AND ABS THREE-PORT MANUFACTURED SUMP FOR FIBERGLASS For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 25.9 in2 www.aquastarpoolproducts.com/flowcode FEATURES Unblockable! Certified, Listed, and Labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/CAN 50 standards Three ports: bottom 2½" OD, 2" ID S/S; inside 2" threaded FPT; two 2" threaded plugs included Must use transitional glue when attaching to PVC pipe #316 stainless steel screws Manufactured from superior UV-resistant engineered polymers Online product support including downloadable CAD files, General Certificate of Conformity, third- party certificate, installation instructions and more Replace drain cover every 5 years from date of installation. Clamping ring and sump should be replaced if damaged 1 per case NOTICE: White assemblies will come with white ABS sump, all other colors are shipped with lig
