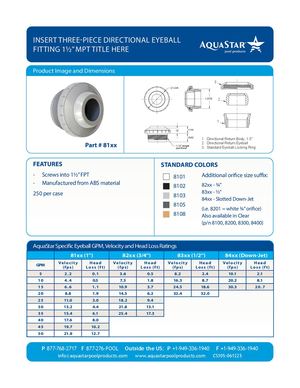

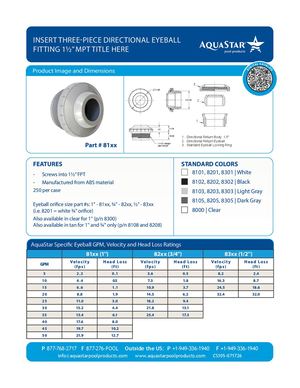

INSERT THREE-PIECE DIRECTIONAL EYEBALL FITTING 1½” MPT TITLE HERE Product Image and Dimensions Part # 81xx FEATURES STANDARD COLORS STANDARD COLORS - Screws into 1½” FPT 8101 Additional orifice size suffix: - Manufactured from engineered polymer 82xx - ¾” 8102 UV-resistant ABS material 83xx - ½” 8103 250 per case 84xx - Slotted Down-Jet 8104 (i.e. 8201 = white ¾” orifice) 8108 Also available in Clear (p/n 8100, 8200, 8300, 8400) AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings 81xx (1'') 82xx (3/4'') 83xx (1/2'') 84xx (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) 5 2.2 0 .1 3.6 0.5 8.2 2.4 10.1 2.1 10 4.4 0.5 7.3 1.8 16.3 8.7 20.2 8.1 15 6.6 1.1 10.9 3.7 24.5 18.6 30.3 20.7 20 8.8 1.9 14.5 6.2 32.4 32.0 25 11.0 3.0 18.2 9.4 30 13.2 4.4 21.8 13.1 35 15.4 6.1 25.4 17.3 40 17.6 8.0 45 19.7 10.2 50 21.9 12.7 P 877-768-2717 F 877-276-POOL
