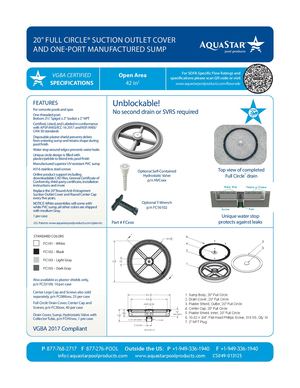

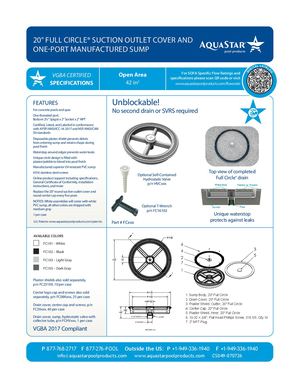

20" FULL CIRCLE® SUCTION OUTLET COVER AND ONE-PORT MANUFACTURED SUMP For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 42 in2 www.aquastarpoolproducts.com/flowcode FEATURES Unblockable! For concrete pools and spas One port: No second drain or SVRS required Bottom 2½" Spigot x 2" Socket x 2" NPT Certified, Listed, and Labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/CAN 50 standards Disposable plaster shield prevents debris from entering sump and retains shape during pool finish Water stop around edges prevents water leaks Unique circle design is filled with plaster/pebble to blend into pool finish Manufactured superior UV-resistant PVC sump Optional Self-Contained Top view of completed #316 stainless steel screws Hydrostatic Valve Online product support including downloadable p/n HVCxxx Full Circle® drain CAD files, General Certificate of Conformity, third- See page 34 party certificate, installation ins
