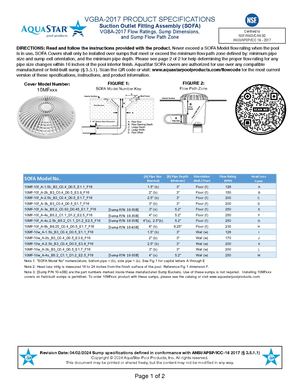

VGBA-2017 PRODUCT SPECIFICATIONS Suction Outlet Fitting Assembly (SOFA) VGBA-2017 Flow Ratings, Sump Dimensions, Certified to and Sump Flow Path Zone NSF/ANSI/CAN 50 ANSI/APSP/ICC 16 - 2017 DIRECTIONS: Read and follow the instructions provided with the product. Never exceed a SOFA Model ow rating when the pool is in use. SOFA Covers shall only be installed over sumps that meet or exceed the minimum ow path zone de ned by: minimum pipe size and sump exit orientation, and the minimum pipe depth. Please see page 2 of 2 for help determining the proper ow rating for any pipe size changes within 16 inches of the pool interior nish. AquaStar SOFA covers are authorized for use over any compatible manufactured or eld-built sump (§ 3.5.1). Scan the QR code or visit: www.aquastarpoolproducts.com/ owcode for the most current version of these speci cations, instructions, and product information. Cover Model Number: FIGURE 1: FIGURE 2: 10MFxxx SOFA Model Number Key Flow Path Zone (A) Pipe Size (B) P
