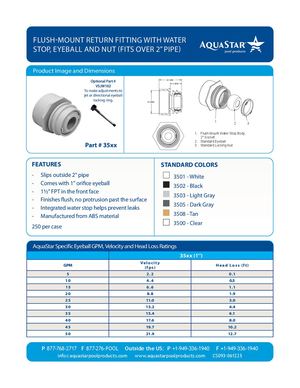

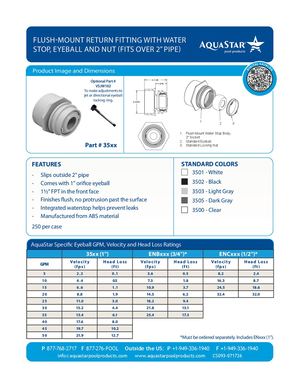

FLUSH-MOUNT RETURN FITTING WITH WATER STOP, EYEBALL AND NUT (FITS OVER 2” PIPE) Product Image and Dimensions Optional Part # VSJW102 To make adjustments to jet or directional eyeball locking ring. Part # 35xx FEATURES STANDARD COLORS STANDARD COLORS - Slips outside 2” pipe 3501 Additional orifice size suffix: - Finishes flush, no protrusion past the surface 3502 35xxB - ¾” - Integrated water stop helps prevent leaks 35xxC - ½” 3503 - Manufactured from engineered polymer 35xxD - Slotted Down-Jet UV-resistant ABS material 3504 (i.e. 3501B = white ¾” orifice) 3508 Also available in Clear 250 per case (p/n 3500) AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings 35xx (1'') 35xxB (3/4'') 35xxC (1/2'') 35xxD (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) 5 2.2 0 .1 3.6 0.5 8.2 2.4 10.1 2.1 10 4.4 0.5 7.3 1.8 16.3 8.7 20.2 8.1 15 6.6 1.1 10.9 3
