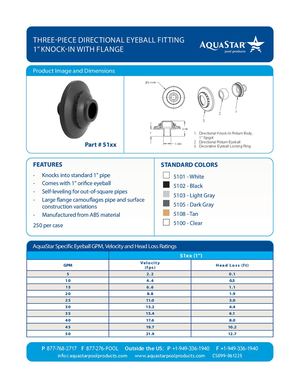

THREE-PIECE DIRECTIONAL EYEBALL FITTING 1” KNOCK-IN WITH FLANGE Product Image and Dimensions Part # 51xx FEATURES STANDARD COLORS STANDARD COLORS - Knocks into standard 1” pipe 5101 Additional orifice size suffix: - Self-leveling for out-of-square pipes 5102 52xx - ¾” - Large flange camouflages pipe and surface 53xx - ½” 5103 construction variations 54xx - Slotted Down-Jet - Manufactured from engineered polymer 5104 (i.e. 5201 = white ¾” orifice) UV-resistant ABS material 5108 250 per case AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings 51xx (1'') 52xx (3/4'') 53xx (1/2'') 54xx (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) 5 2.2 0 .1 3.6 0.5 8.2 2.4 10.1 2.1 10 4.4 0.5 7.3 1.8 16.3 8.7 20.2 8.1 15 6.6 1.1 10.9 3.7 24.5 18.6 30.3 20.7 20 8.8 1.9 14.5 6.2 32.4 32.0 25 11.0 3.0 18.2 9.4 30 13.2 4.4 21.8 13.1 35 15.4 6.1 25.4 17.3 40 17.
