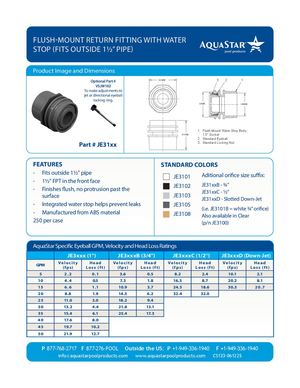

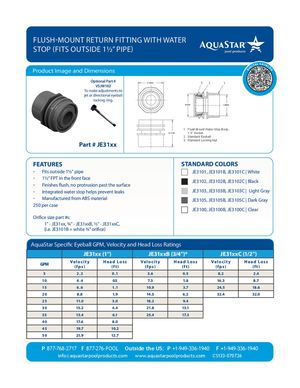

FLUSH-MOUNT RETURN FITTING WITH WATER STOP (FITS OUTSIDE 1½” PIPE) Product Image and Dimensions Optional Part # VSJW102 To make adjustments to jet or directional eyeball locking ring. Part # JE31xx FEATURES STANDARD COLORS STANDARD COLORS - Fits outside 1½” pipe Aditional orifice size suffix: JE3101 - 1½” FPT in the front face JE3102 JE31xxB - ¾” - Finishes flush, no protrusion past the JE31xxC - ½” surface JE3103 JE31xxD - Slotted Down-Jet - Integrated water stop helps prevent leaks JE3104 (i.e. JE3101B = white ¾” orifice) - Manufactured from engineered polymer JE3108 Also available in Clear UV-resistant ABS material (p/n JE3100) 250 per case AquaStar Specific Eyeball GPM, Velocity and Head Loss Ratings JE3xxx (1'') JE3xxxB (3/4'') JE3xxxC (1/2'') JE3xxxD (Down-Jet) Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head Ve l o c i t y Head GPM (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) (f p s) L o s s (f t ) 5 2.2 0 .1 3.6 0.5 8.2 2.4 10.1 2.1 10 4.4 0.5
